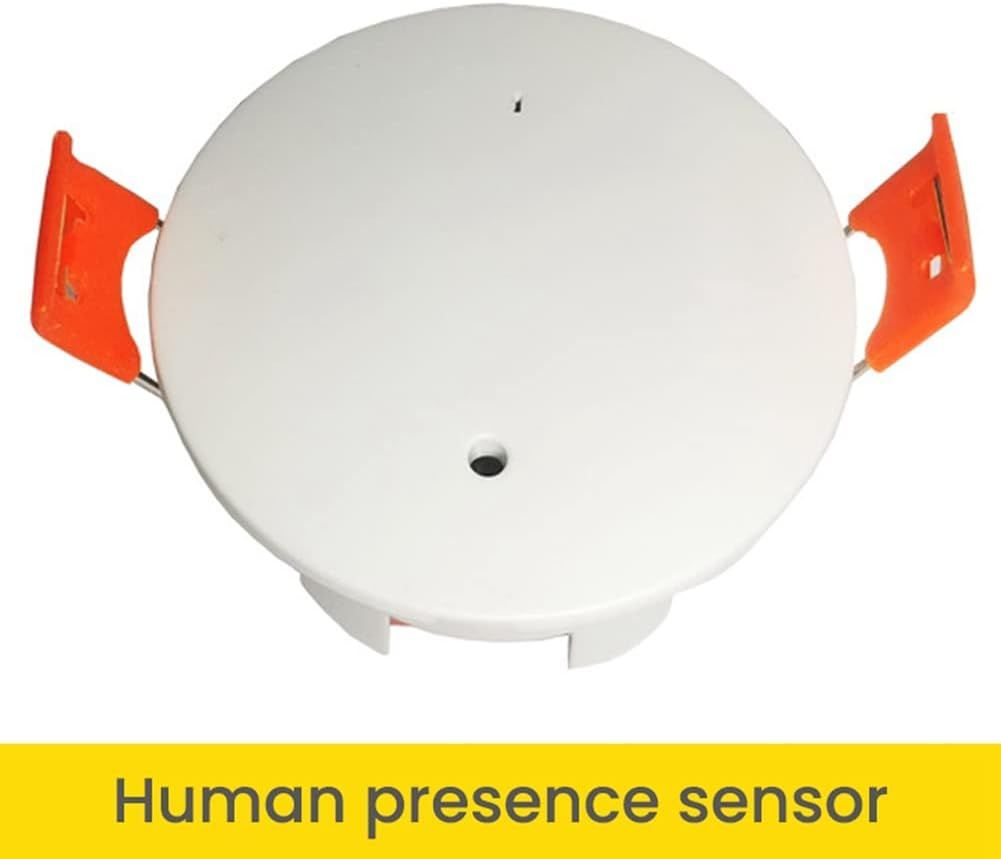

Tuya Motion and

Breathing Sensor Instruction

Introductory Video

1. Product Function

Fretting detection:

It can detect small movements, such as hand lifting, hand flicking, hand turning, etc.

Presence detection:

It can detect the human body standing still, squatting still, sitting still and other static states.

Motion detection:

It can detect walking, trotting, fast running, circling, jumping and other movements.

Distance measurement:

The target distance measurement function can accurately filter targets outside the area.

Illuminance detection. Detectable illuminance value Log.

Illuminance detection:

Detectable illuminance value.

Log query:

It can query the records of human existence and illumination change.

Adjustable parameters:

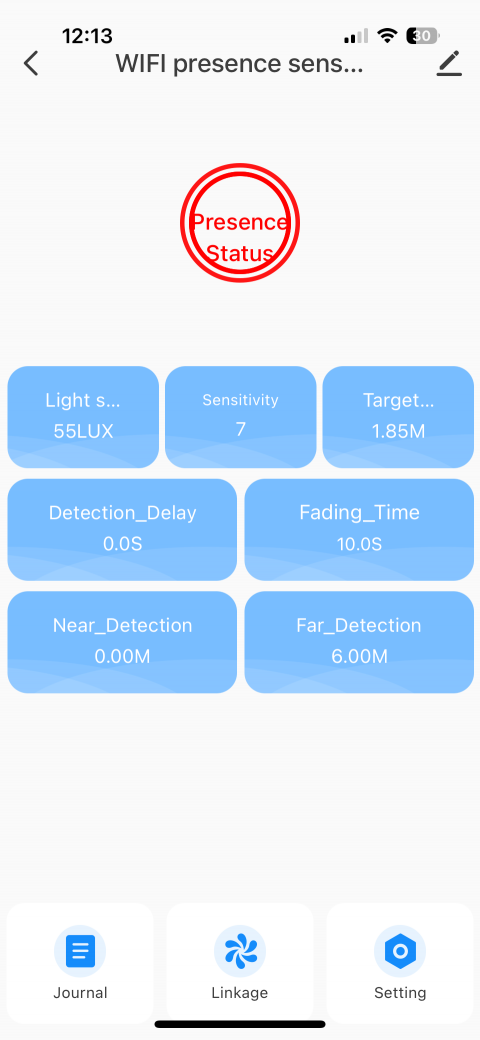

Various parameters such as detection distance can be set through app.

Fault detection:

Equipment fault information can be self checked through app.

2. Product Characteristics

Distance filtering:

Through multi-target distance measurement, the targets outside the area are filtered. The batch application has better consistency and more stable performance, and effectively solves the problems of detection distance control and through wall false alarm.

Large induction radius:

Wide beam angle and long detection distance. During typical top loading, the detection radius of fretting can reach 5-7m. When wall mounted, the detection distance of fretting can reach 11m.

Flexible parameter configuration:

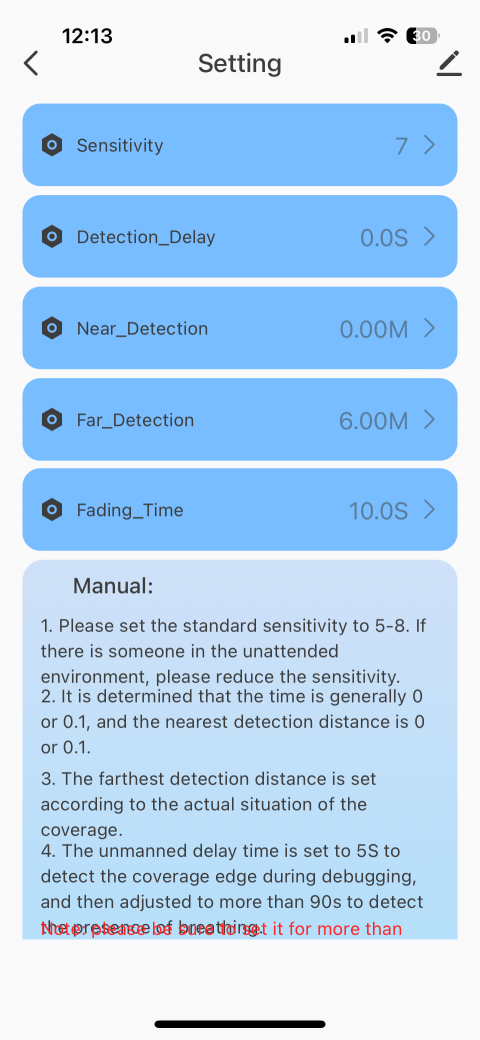

A variety of parameters such as detection distance, detection sensitivity, delay time and light sense can be configured through the mobile terminal to adapt to different application scenarios.

Stable induction:

Compared with the traditional continuous wave breath detection or enhanced Doppler technology, zy-m100 sensor has higher sensitivity, stronger reliability and lower false alarm rate.

Strong anti-interference ability:

It can avoid co frequency interference and support intensive use; Various digital signal processing algorithms to suppress WiFi interference, power frequency clutter, high-order harmonics and burst interference and avoid false positives.

Not affected by the environment:

It is not affected by snow, haze, temperature and humidity, dust, light, noise, etc.

Strong penetration:

It can penetrate glass, plastic, clothing, ceramics, thin wood and other materials.

3. Application Areas

The Spot Tuya micro motion sensor can be widely used in lighting, security, home appliances, hotels, garages, buildings, transportation, IOT Internet of things and other industries that need to detect human micro motion, motion and control the detection distance.

Test scope:

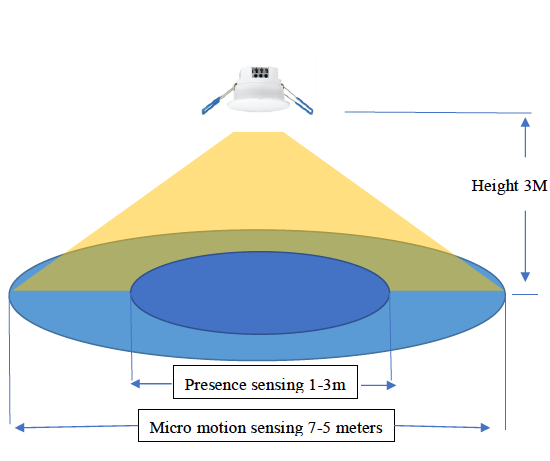

The following figure is the schematic diagram of the detectable area during "top installation".

(1) "Inching" detection area: it can detect inching (small actions such as leaning head, waving, raising hands, light start, turning books, slightly tilting left and right, back and forth), movement (walking, trotting, fast running, turning, high jump and other movements), existence (standing still, squatting still);

(2) "Presence" detection area: it can detect the human body in static state, such as standing still, squatting still, sitting still, etc.

Detection area (related to installation height and sensitivity parameters);

~existing detection radius: 1 ~ 3M

~fretting detection radius: 5 ~ 7M

WiFi Installation:

WiFi network

The sensor is powered by 80V~250V. The indicator light of the sensor will be on for 1s, press mand hold the reset button for 6 seconds until the indicator light flashes. Follow the App instructions to connect to WiFi and set the sensor.

Unit Installation:
